Brand:
WANTAIItem NO.:
Dust CollectorPayment:
T/TProduct Origin:
ChinaColor:
Blue&WhiteShipping Port:
ShanghaiLead Time：

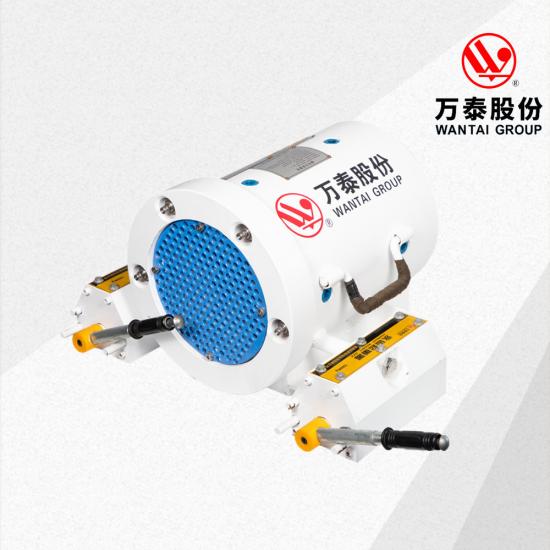

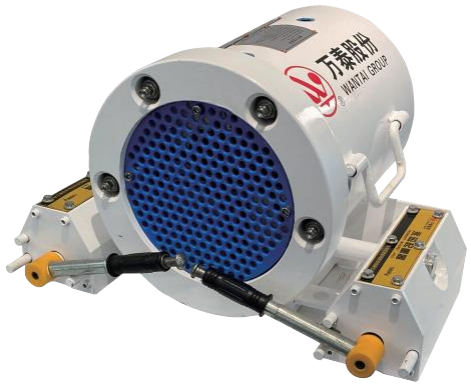

60 DaysKJS series pneumatic wet precipitator for mine
Introduction
KJS series mining pneumatic wet dust collector (formerly KJS series mining wind and water linkage dust collector) is designed for dust removal in places such as drilling operations, shotcrete operations, and tunneling work faces. The dust collector is placed next to the drilling rig, shotcrete mixer, tunneling machine body, and belt unloading point. It is easy to install underground. Only a high-pressure water pipe needs to be plugged into the water inlet of the filter. The water outlet of the filter is connected to the water inlet joint of the dust collector through a high-pressure hose, and the compressed air is connected to the air inlet. Open the high-pressure water valve and the compressed air valve to control the operation of the equipment.
Equipment parameter
|
Parameter item |
Unit |
Technical parameter |
|||
|
Model number |
|
KJS-400Q |
KJS-260Q |
KJS-170Q |
KJS-130Y(Water power) |
|
Rated treated air volume |
m³/min |
400 |
260 |
170 |
130 |
|
Adaptive pressure range |
MPa |
1~3 |
1~3 |
1~3 |
1~3 |
|
Rated water pressure |
MPa |
1.5 |
1.5 |
1.5 |
4 |
|
Rated water consumption |
L/min |
≤25 |
≤25 |
≤25 |
≤30 |
|
Adapt to the wind pressure range |
MPa |
0.3~0.6 |
0.3~0.6 |
0.3~0.6 |
/ |
|
Rated air pressure |
MPa |
0.5 |
0.5 |
0.5 |
/ |
|
Rated air consumption |
m³/h |
≤35 |
≤30 |
≤30 |
/ |
|
Dust removal efficiency |
% |
≥80 |
≥80 |
≥80 |
≥80 |

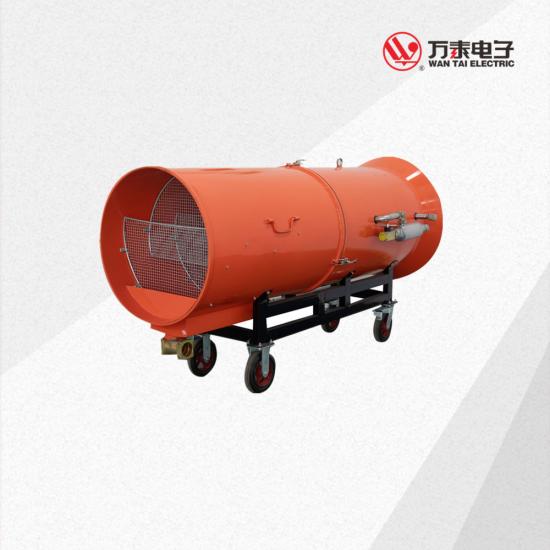

FJP series mine spray dust removal fan
Introduction
FJP series mine spray dust suppression fan (formerly JPK-3 mine water-powered spray dust suppressor) is used for dust suppression in belt lanes, return air lanes, coal mining working faces, etc.
The dust suppressor is placed on the top of the belt lane, return air lane, coal mining machine rocker arm or body, and the underground high-pressure water pipe is plugged into the water inlet of the filter. The water outlet of the filter is connected to the water inlet joint of the dust suppressor through a high-pressure hose, and the high-pressure water valve is opened for equipment operation.
Equipment parameter
|
Parameter item |
Unit |
Technical parameter |
|||
|
Model number |
/ |
FJP-70Y |
FJP-20Y |
FJP-14Y |
FJP-9Y |
|
Rated air volume |
m³/min |
70 |
20 |
14 |
9 |
|
Working water pressure |
MPa |
2~6 |
1~3 |
2~6 |
2~6 |
|
Ratedwater pressure |
MPa |
4 |
1.5 |
3 |
2.5 |
|
Ratedwater consumption |
L/min |
≤35 |
≤35 |
≤70 |
≤65 |
|
Working pressure |
MPa |
/ |
0.3~0.6 |
/ |
/ |
|
Rated air pressure |
MPa |
/ |
0.4 |
/ |
/ |
|
Rated air consumption |
m³/h |
/ |
≤25 |
/ |
/ |
|
Operating noise |
dB(A) |
≤85 |
≤85 |
≤85 |
≤85 |
|
Effective range |
m |
≥7 |
≥5 |
≥6 |
≥5 |
|
Dust removal efficiency |
% |
≥80 |
≥80 |
≥80 |
≥80 |

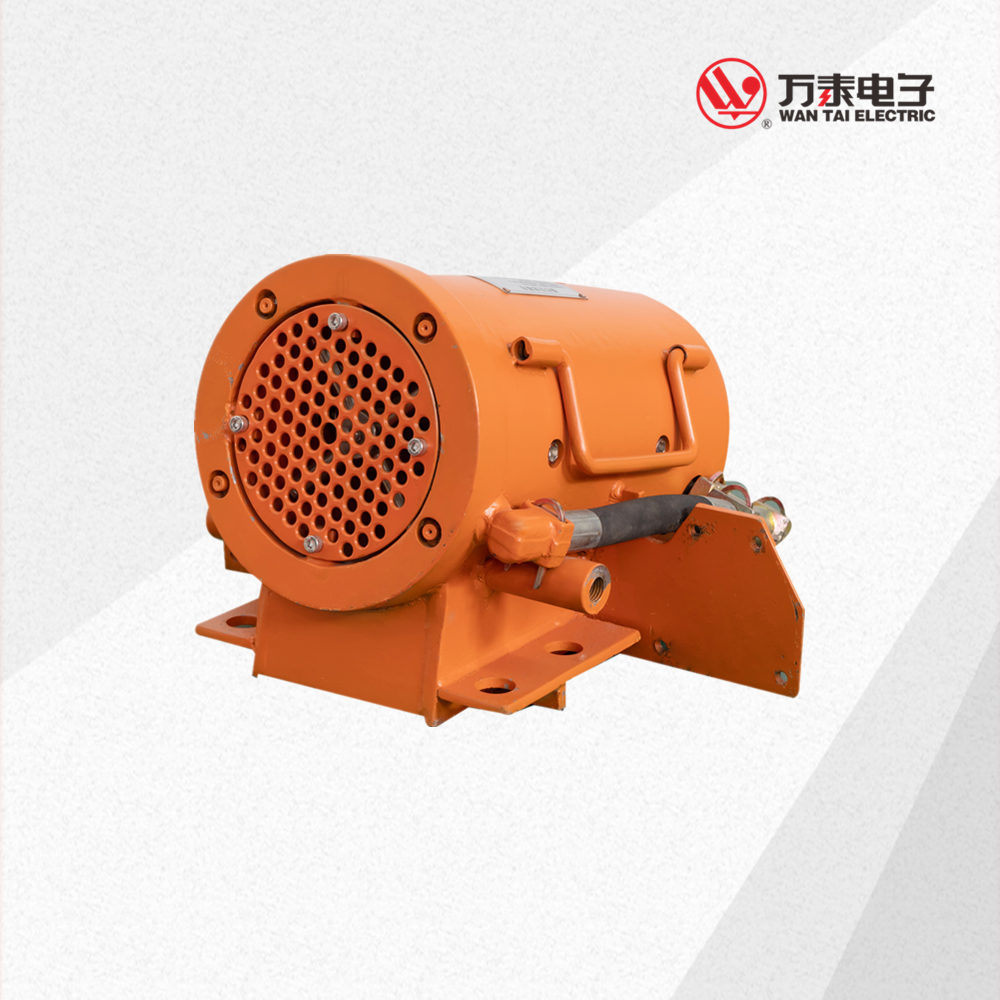

FQ series mine pneumatic compression axial flow local fan
Introduction
Temporary operation time in underground coal bunkers, water bunkers, equipment chambers and other places is short, and it is time-consuming and labor-intensive to use electric fans to arrange temporary ventilation in the workplace. Based on this situation, the company developed the FQ series of pneumatic pressure-type axial flow local ventilators for mining, which solved the problems of temporary air supply and short-distance air supply operations, and reduced the labor intensity and complexity of the workers.
Equipment parameter
|
Model number |
Airyolume m3/min |
Total pressure |
Gas supply pressure |
Air consumption |
Rotational speed |
Impeller diameter |
weight |
|
FQ№4.0 |
140 |
450 |
0.5~0.7 |
≤35 |
1500 |
φ365 |
55 |
|
FQ№5.0 |
190 |
300 |
0.5~0.7 |
≤35 |
1500 |
φ462 |
61 |
|
FQ№5.6 |
260 |
300 |
0.5~0.7 |
≤35 |
1400 |
φ560 |
65 |
