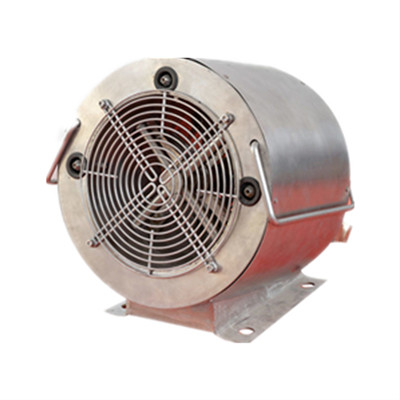

FJP Series Dust Removal Spray Fans For Mining

The FJP series of mine spray dust suppression fans are used for dust removal in belt lanes, wind return lanes, and coal mining faces.
The dust remover shall be placed on the top of the belt roadway, return air roadway, the rocker arm or body of the shearer or at the place designated by Party A. the underground high-pressure water pipe shall be inserted at the filter inlet, and the filter outlet shall be connected to the water inlet joint of the dust remover through the high-pressure rubber pipe, and the high-pressure water valve equipment shall be opened for operation.
  • Brand:

    WANTAI
  • Item NO.:

    FJP Series
  • Goods Stock:

    1
  • Price Range:

    5 - 100
1.Summary
Mine Hydrodynamic Dust Remover is suitable for dust reduction of coal mining surface shearer, dust reduction of roadway roadheader, slurry dust reduction of roadway, dust reduction of mining surface crusher, dust reduction of belt conveyor head, coal drop point and so on. Mine Hydrodynamic Dust Remover does not need electric energy, and uses underground static pressure water to drive the fan in the device to rotate so as to achieve the effect of dust reduction. After a long period of repeated testing in many places, the dust reduction fect is obvious, which can better protect the health of the staff near the dust source.
Dust Suppression In Mines
2.Principle of spray dust reduction

Generally speaking, the mechanism of spray dust reduction is inertia collision, gravity settlement, interception and diffusion trapping. The liquid particles ejected from the spray collide with the solid dust particles in inertia, which makes the dust particles moist, self-weight increased and settled in the process of inertia condensation, which is called gravity settlement.In addition, because the flow line cannot be turned, when the flow of dust particles to carry the movement of water mist particles and not far from the fog particles will start around the flow of water mist movement. In the air flow, the coarse particles of dust will move in the direction of droplets because of inertial action. If the quality of the dust particles is not taken into account, the dust particles will be synchronized with the air flow. Because of the volume of dust particles, when the distance between the streamline and the water fog particles is less than the radius of the dust particles, the dust particles will be intercepted in contact with the water droplets, so that the dust particles are attached to the water fog, which is the effect of interception and dust trapping.

Water Dust Suppression

3.Brief introduction of Mine Hydrodynamic Dust Remover
The dust reducing device provided by shearer and roadheader can not achieve the best effect. The general dust reducing equipment needs power supply and the installation workload is heavy. After many years of working experience, the product is designed with light weight and no electricity, which can better protect the health of the staff.
Mine Hydrodynamic Dust Remover is used for dust reduction in fully mechanized mining face, driving face, belt conveyor transfer point and other dust environment. The device does not need electric energy, and uses underground static pressure water to drive the fan in the device to rotate 80 as to achieve the role of dust cleaning and dust reduction. Because the mine hydrostatic water is all sewage, with hate alkaline and corrosive, SO the device is all stainless steel and other corrosion resistant materials.

4.Equipment Parameters

Dlameter
Mode Air Volume Water Pressure Spray Distance Spray Width Fan Speed
425MM
spraying dust
suppression
140-185 m
³/min
2-6MPa
12-15M
3-5M
1500-2500R
550MM
spraying dust
suppression
185-240 m
³/min
2-6MPa
15-20M
5-8M
1500-2500R
