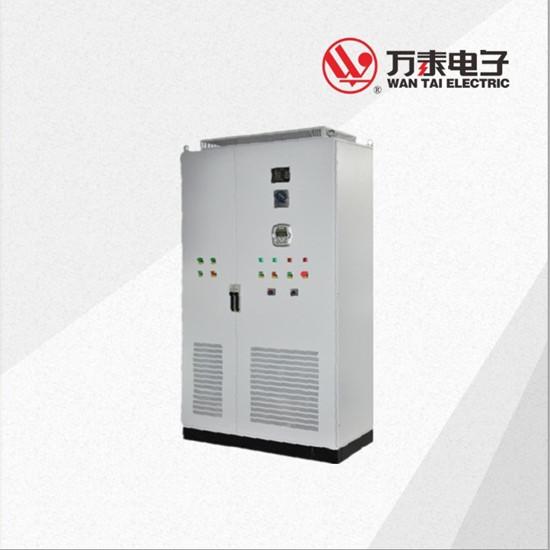

BPG series AC inverter cabinet

BPG Series AC Converter Cabinet is a series of converters developed and designed by our company for non-explosion-proof applications on the ground. It is a high-tech product that integrates digital frequency conversion speed regulation device, high and low voltage distribution device, heat dissipation technology, digital display communication technology and moisture-proof and cold-proof technology. This product is suitable for heavy load soft start, soft stop and operation process control of variable frequency asynchronous motor or ordinary asynchronous motor with AC 50Hz, motor power 5.5KW~2000KW, rated voltage 380V or 660V or 1140V. Its starting, stopping and process control curves can be set as "S" curve, linear curve, function curve and other curves. Line form.

This product is applied to soft start, soft stop, process control and energy saving application of motor in non-explosion-proof applications such as coal mine, other mines, petroleum and chemical industry. It is especially suitable for frequency conversion speed control of winches, belt conveyors, scraper conveyors, coal feeders, fans, local fans, water pumps, pressure fans and emulsion pumps in non-explosion-proof situations such as coal mine surface mining areas, coal preparation plants and power plants.

Obvious energy saving effect, economic operationThe 7/10 inch display shows that the user can simply debug and repair by using the built-in "debugging navigation system" and "maintenance navigation system", and the component "life alarm system" is set up to give an alarm when the component is close to its service life, so as to prevent the damage of the component life from affecting productio

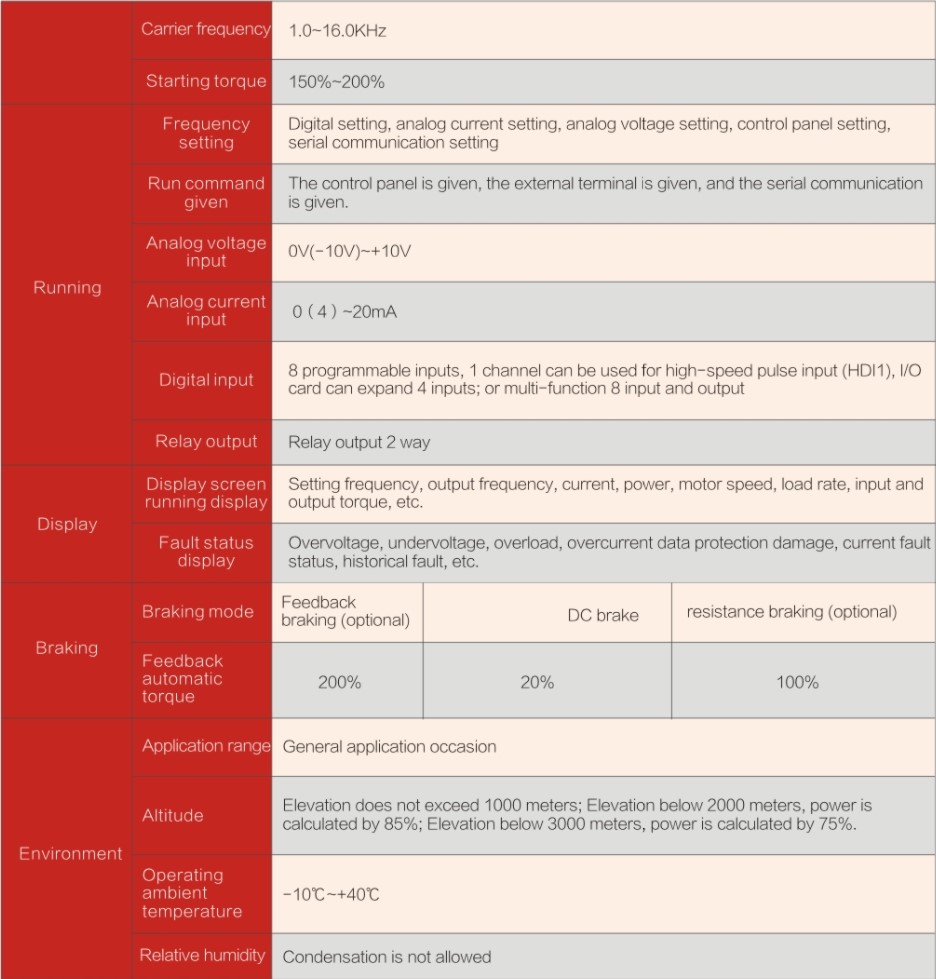

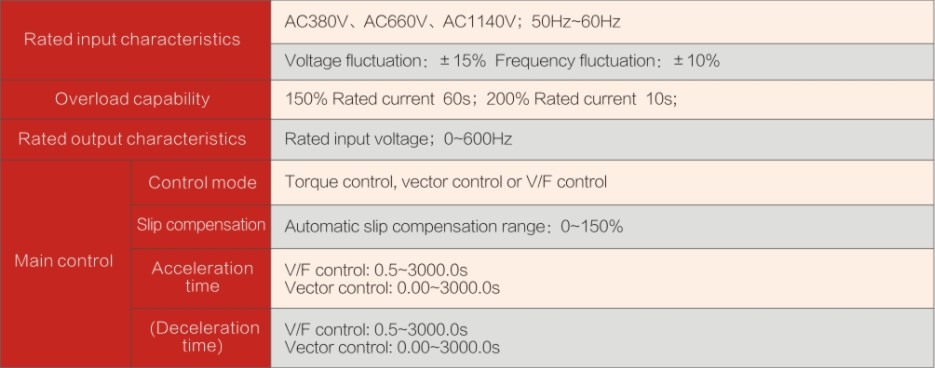

4. Technical Parameters
