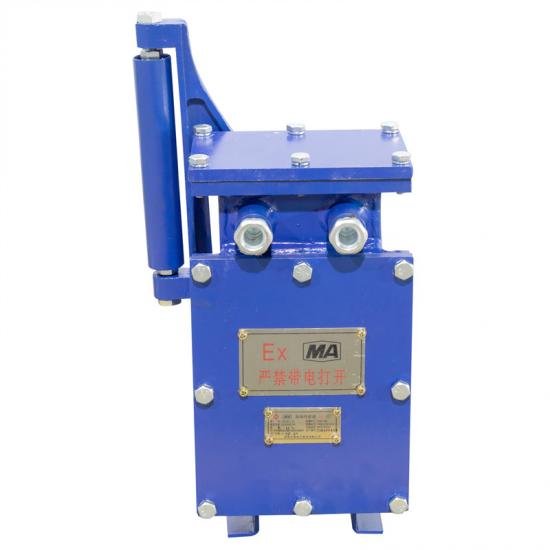

Coal Mine Use Smoke/Temperature/Tension Sensor

Application: GAD5 (B) mine intrinsically safe tension sensor is used in workplaces such as underground coal mines, open-pit coal mines, and coal preparation plants. It is used to detect the tension protection signal of the integrated protection device of the belt conveyor.
  • Brand:

    WANTAI
  • Item NO.:

    GAD5 (B)
  • Order(MOQ):

    1
  • Payment:

    30% in advance and the rest before delivery.
  • Market Price:

    50
  • Price:

    $50/Piece
  • Product Origin:

    China
  • Color:

    Can be customized
  • Shipping Port:

    Shanghai port
  • Lead Time:

    25 working days

Coal Mine Use Tension  Sensor

Features
1. The tension sensor is simple in structure, easy to install, use and carry;
2. It has better sealing and moisture-proof performance;
3. It has high stability against vibration and shock;
4. The structural design ensures that the transmission error is small and the measurement is reliable, and has good static and dynamic characteristics;
5. Can be used for long-distance static and dynamic measurement.



Technical parameters
1. Normal working conditions
2. The ambient temperature is -5ºC~+40ºC;
3. The altitude does not exceed 2000m (86kPa~110kPa);
4. The relative humidity of the surrounding air is not more than 98% (25ºC);
5. In mines containing explosive mixtures of methane;
6. Places without significant shaking and shock vibration;
7. The place where dripping water can be prevented in the environment of non-damaging gas or steam.
8. Intrinsic safety parameters: Ui: DC12.5V, Ii: 10mA, Li: 0.1mH, Ci: 0.1μF;
9. Input signal: 4~20mVDC, output signal: 2~5VDC, error: ±8%.



Technical requirements
1. All signs of the product should be clear and upright and installed firmly.
2. Measuring range and protection characteristics
A tension of 0-100KN is applied to the mine-used intrinsically safe tension sensor. The output end of the mine-used intrinsically safe tension sensor should output a DC signal of 2-5V, and the error should be ≤±10%.



Characteristics
1. The tension sensor is simple in structure, easy to install, use and carry.
2. It has good sealing and moisture-proof performance.
3. It has high stability against vibration and shock.
4. The structure design ensures small transmission error and reliable measurement, and has good static and dynamic characteristics.
5. It can be used for long-distance static and dynamic measurement.
