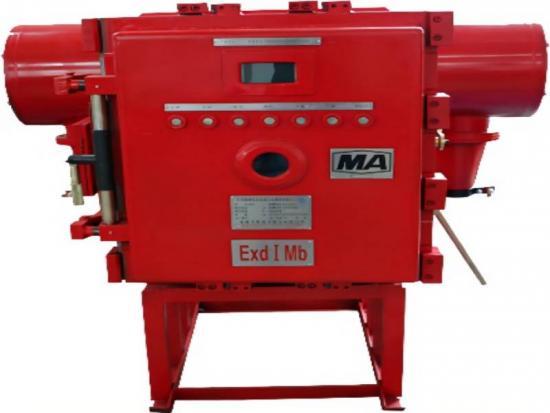

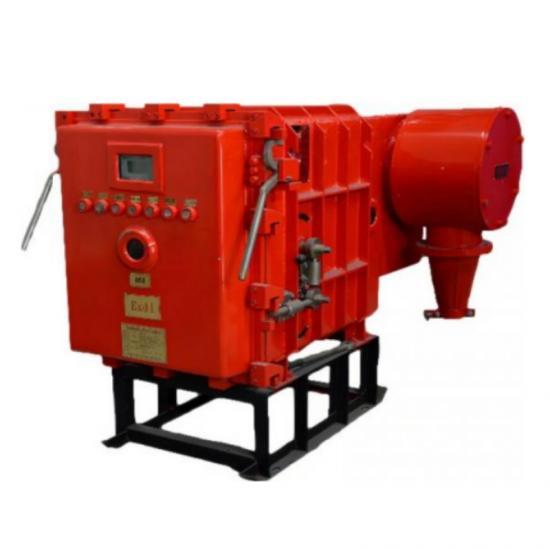

Mining explosion - proof permanent magnet mechanism high voltage vacuum power distribution device

The product is mainly applicable in the coal mine with explosive gas (methane mixture), to control, protect and measure in the three-phase AC neutral point not directly grounded power supply system of rated voltage 10KV, 6KV, rated frequency 50Hz.
  • Brand:

    WANTAI
  • Item NO.:

    PBG1
  • Order(MOQ):

    1
  • Payment:

    T/T,D/P,etc.
  • Market Price:

    3600
  • Price:

    $3600/PC
  • Price Range:

    1 - 2000
  • Product Origin:

    WANTAI,CHINA
  • Color:

    Red
  • Shipping Port:

    China port
  • Lead Time:

    45 Working days
  • Weight:

    1053K

Structure Description

1. The explosion-proof enclosure is composed of a main cavity and  a wiring cavity
2. The front door has a quick-opening structure and has a mechanical locking function;
3. With manual closing and opening, electric closing and opening functions;
4. The wiring cavity is divided into upper and lower cavities, the upper cavity is the power input line, and the lower cavity is the output line
5. The front door is equipped with control buttons, setting buttons, PLC high-voltage comprehensive protectors, man-machine dialogue display devices, etc.


Technical Advantages And Functional Characteristics

1. WTG-200 high voltage switch microcomputer integrated protection device or PLC programmable controller
2. The human-computer interaction interface uses Chinese color LCD screen, customizable display language.
3. It has standard RS485 communication interface, provides standard communication protocol.
4. Customizable with lighting or heating dehumidification.
5. Detailed fault parameters can be displayed, recorded and queried
6. A national invention patent for a product.
7. The high-voltage permanent magnet vacuum circuit breaker control equipment, with breaking capacity is strong and the breaking speed is fast.


Technical Parameters

Rated Voltage
 6,10
 KV
Rated Current
50,100,150,200,300,400500,630
A
Rated Frequency
 50
HZ
Rated Short-Circuit Breaking Current
12.5
KA
Rated Short-Circuit Making Current
31.5
KA
Rated Peak Withstand Current
31.5
KA
Allowable Operating Frequency
180
Times/H
Short Circuit Protection Action Time
≤100
MS
Mechanical Life
100000
Times
Dimensions(W*D*H)
1572*1384*1321
MM
