Permanent Magnet Frequency Conversion Tensioning Device for Belt Conveyors

The ZPJ series mining frequency conversion automatic tensioning device is mainly used in the harsh environments of coal mines with the risk of gas and coal dust explosions. It is designed for the automatic tensioning of belt conveyors.

Model Definition

ZP--- Mining Frequency Conversion Automatic Tensioning Device

J---  Winch

600--- Maximum Tension 600 kW

90--- Motor Pwer

Y--- Permanet Magnet

Main Technical Parameters

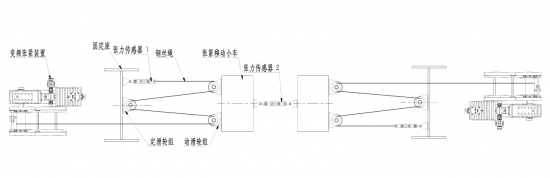

Working Principle

• Belt Conveyor Start-up Process: During the acceleration phase of the belt conveyor, the belt tension decreases, which can easily cause slipping. The automatic tensioning device quickly tightens the belt to the set value and maintains the set tension until the belt conveyor completes the acceleration process.
• Belt Conveyor Running Process: After the belt conveyor completes the acceleration process and maintains rated frequency operation, the tensioning system automatically controls the tightening and loosening of the belt based on the set upper and lower tension limits.
• Belt Conveyor Stopping Process: During the stopping process of the belt conveyor, the belt tension continues to rise. The automatic tensioning system maintains the loosening of the belt to keep the tension within a reasonable range until the conveyor completely stops. This process removes the increased tension during the stopping process, preventing the static tension from increasing when the conveyor stops, which could reduce the belt's lifespan.

Main Components of the Tensioning Device

• ZPJ-200 Tensioning Winch
• TBVF-75/40YC Explosion-proof Permanent Magnet Motor for Mining
• BED-80/6 Hydraulic Brake
• V3HH8-40-A-FAN Gearbox
• BPQJ Tensioning Frequency Converter
• Tension Sensor

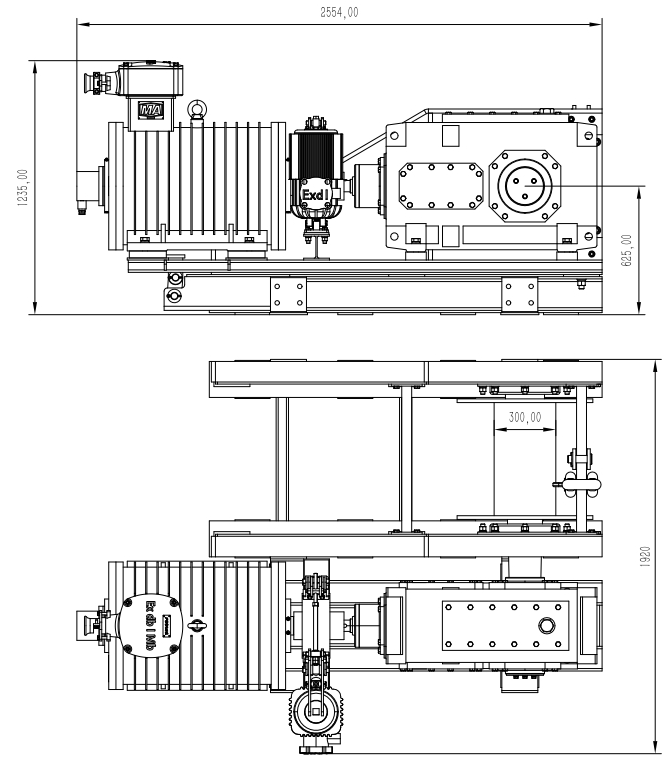

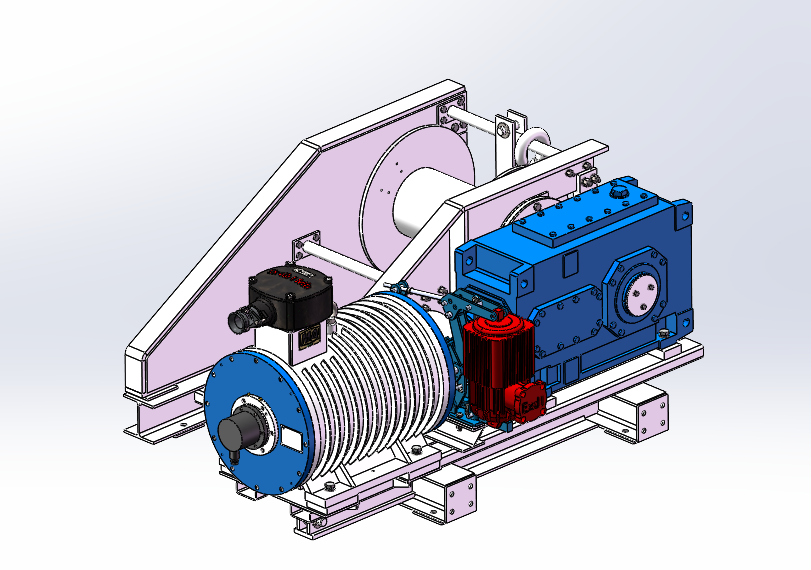

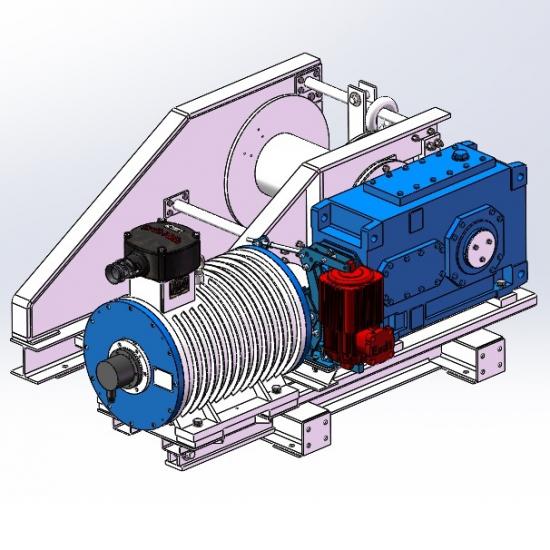

Tensioning Winch

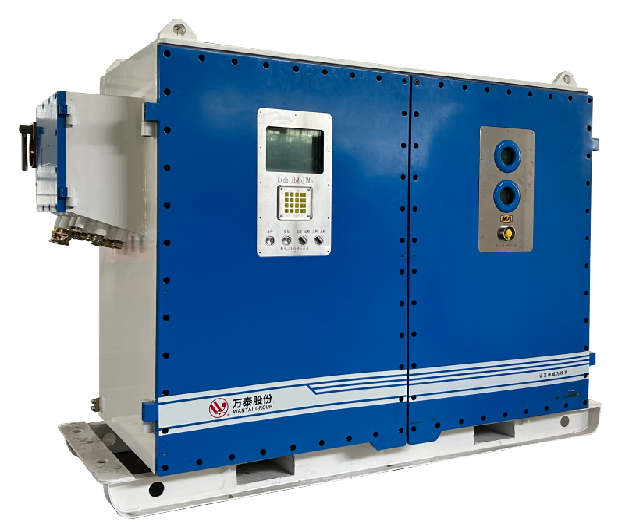

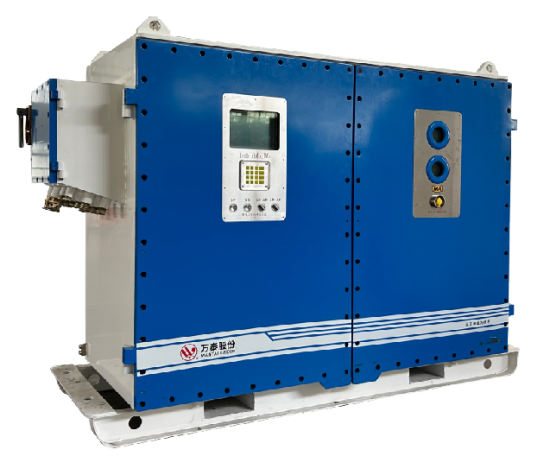

BPQJ Tensioning Device with Frequency Converter Starter

1. Main Configuration of the Frequency Converter Starter

• 1 circuit of 400kW four-quadrant frequency conversion output.
• 8 circuits of power frequency output, with a total output current not exceeding 250A.
• 4 circuits of 127V output.

• Intelligent Tension Control: By analyzing the relationship between belt tension and smooth operation, it adjusts the belt tension in real-time, effectively solving vibration and slipping issues during belt operation.
• High Level of Intelligence: After simple parameter settings by the user, the intelligent tensioning system can be automatically put into use, adjusting the belt tension automatically. It also displays the belt tension and dynamic adjustment curves in real-time.
• Matrix Keyboard Control: Facilitates quick parameter settings.
• Intrinsically Safe Ethernet Download Port: Allows for program downloading and debugging without opening the door.
• Adaptability to Various Working Conditions: This frequency converter starter can also be applied to other occasions that require frequency conversion, power frequency, and lighting simultaneously.

Automatic Tensioning Load Test Platform
