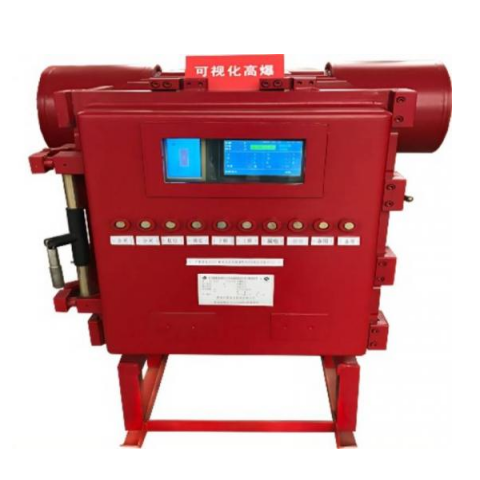

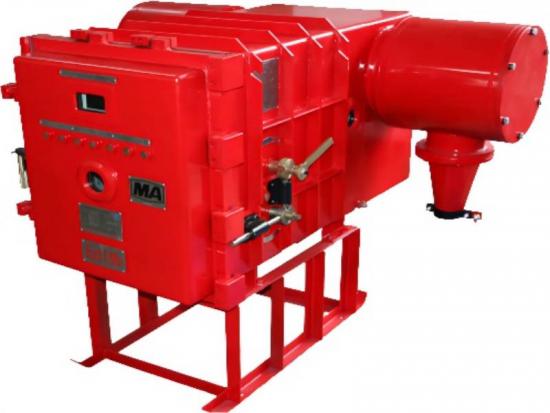

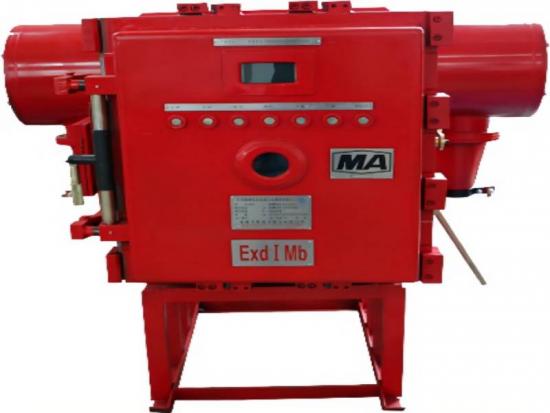

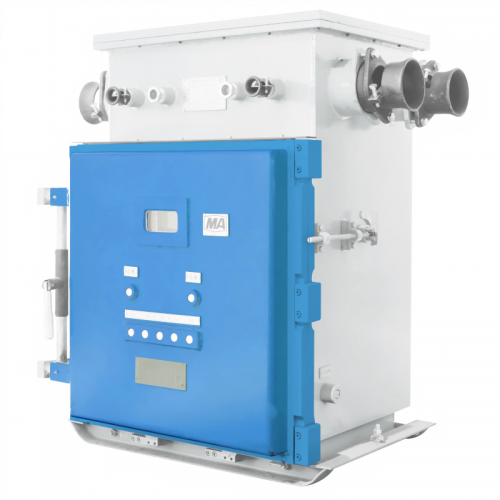

Mining explosion - proof permanent magnet mechanism high voltage vacuum power distribution device

The product is mainly applicable in the coal mine with explosive gas (methane mixture), to control, protect and measure in the three-phase AC neutral point not directly grounded power supply system of rated voltage 10KV, 6KV, rated frequency 50Hz.
  • Brand:

    WANTAI
  • Item NO.:

    PBG1
  • Order(MOQ):

    1
  • Payment:

    T/T,D/P,etc.
  • Market Price:

    3600
  • Price:

    $3600/PC
  • Price Range:

    2 - 6
  • Product Origin:

    WANTAI,CHINA
  • Color:

    Red
  • Shipping Port:

    China port
  • Lead Time:

    45 Working days
  • Weight:

    1053K

Technical Parameters

Rated Voltage
 6,10
 KV
Rated Current
50,100,150,200,300,400500,630
A
Rated Frequency
 50
HZ
Rated Short-Circuit Breaking Current
12.5
KA
Rated Short-Circuit Making Current
31.5
KA
Rated Peak Withstand Current
31.5
KA
Allowable Operating Frequency
180
Times/H
Short Circuit Protection Action Time
≤100
MS
Mechanical Life
100000
Times
Dimensions(W*D*H)
1572*1384*1321
MM

Structure Description
1. The explosion-proof enclosure is composed of a main cavity and  a wiring cavity
2. The front door has a quick-opening structure and has a mechanical locking function;
3. With manual closing and opening, electric closing and opening functions;
4. The wiring cavity is divided into upper and lower cavities, the upper cavity is the power input line, and the lower cavity is the output line
5. The front door is equipped with control buttons, setting buttons, PLC high-voltage comprehensive protectors, man-machine dialogue display devices, etc.
Technical Advantages And Functional Characteristics
1. WTG-200 high voltage switch microcomputer integrated protection device or PLC programmable controller
2. The human-computer interaction interface uses Chinese color LCD screen, customizable display language.
3. It has standard RS485 communication interface, provides standard communication protocol.
4. Customizable with lighting or heating dehumidification.
5. Detailed fault parameters can be displayed, recorded and queried
6. A national invention patent for a product.
7. The high-voltage permanent magnet vacuum circuit breaker control equipment, with breaking capacity is strong and the breaking speed is fast.

Related Products
Mining Distribution device
Mining Explosion-Proof Intrinsically Safe Permanent Magnetic Mechanism High Voltage Vacuum Distribution device
The product is mainly used in coal mine with explosive dangerous gas (methane mixture). The power supply system with rated voltage of 10 kV, 6 kV, rated frequency of 50 Hz and non-direct grounding of three-phase AC neutral point is used to control, measure and protect the power supply system with rated voltage of 10 kV, 6 kV, rated frequency of 50 Hz and non-direct grounding of three-phase AC neutral point.
Mining Distribution device
Mining Explosion-proof and intrinsically safe permanent magnet mechanism high-voltage vacuum power distribution device
The product is mainly applicable in the coal mine with explosive gas (methane mixture), to control, protect and measure in the three-phase AC neutral point not directly grounded power supply system of rated voltage 10KV, 6KV, rated frequency 50Hz.
Mining Contact Cabinet
Mining explosion-proof intrinsically safe high-voltage power distribution cabinet contact cabinet
The product is suitable for underground coal mines with explosive dangerous gas, in the power supply system with rated voltage of 10kV or 6kV, rated frequency of 50Hz, and three-phase AC neutral point is not directly grounded, as high-voltage power distribution, high-voltage starter and other high-voltage electrical equipment. , used for its secondary control power supply and metering signal, and its explosion-proof performance and electrical performance meet the requirements of national standards and industry standards.
Permanent magnet electric drum
Mining Explosion-Proof Permanent Magnet Electric Roller
Mining flameproof three-phase permanent magnet synchronous electric drum is a new low-speed and high torque external rotor permanent magnet motor independently developed by Wantai, commonly known as permanent magnet electric drum.
multi-loop combination switch
Mine Explosion Proof And Intrinsically Safe Multi Circuit High Voltage Vacuum Electromagnetic Starter
It is used in coalminesin three-phase neutral ungrounded transmission lines with voltage AC 3300V,50Hz. It canmake local and remote control of three-phase asynchronous motor and concentrated control of coal cutter,scraper conveyor, crusher,reversed loader, pump station and other equipments of comprehensive mechanized coalfaces.
Mining high-voltage vacuum electromagnetic starter
Mine Explosion-Proof and Intrinsically Safe Multi Circuit High Voltage Vacuum Electromagnetic Combination Switch
Mining explosion-proof and intrinsically safe type multi-loop high-voltage vacuum electromagnetic starter is suitable for coal mine AC 3300V, frequency 50Hz, three-phase neutral point unearthed power supply system, local or remote control of three-phase asynchronous electric drive, to realize the centralized control of shearer, scraper conveyor, crusher, transfer machine, pumping station and other equipment in comprehensive mechanized coal mining face.
Permanent Magnet Electric Motor
Explosion proof Permanent magnet motor
The permanent magnet synchronous motor adopts centralized winding, optimal pole slot coordination, and rotor structure integrating isolation, stress, positioning and lightweight, with small rotational inertia, small leakage flux, large main flux, higher power factor and higher efficiency.
Electrical equipment
11k VCB 1250A Vacuum Circuit Breaker
It is a indoor high voltage switch equipment, applicable to 12 kv rated voltage, three-phase power system frequency 50 hz, used as protection and control electric equipment, as a result of the vacuum arc extinguishing performance is good, anti-fouling ability strong, almost maintenance-free special superiority, especially suitable for high current load frequent operation.
