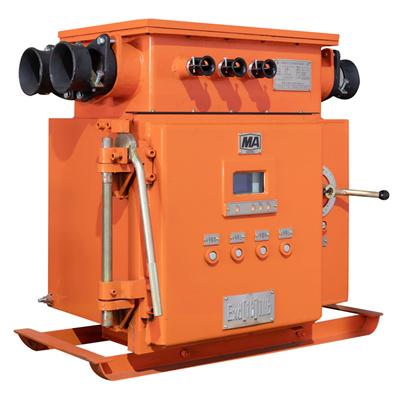

Mining Explosion-Proof Intrinsically Safe Intelligent Vacuum Electromagnetic Starter

Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter Mining Explosion Proof Starter

Mining Explosion-Proof Intrinsically Safe Intelligent Vacuum Electromagnetic Starter

The device is used in coal mines containing explosive gas (methane) and coal dust. It is suitable for the circuit of AC 50Hz, voltage 660V or 1140V, ungrounded three-phase center. To local control or remote control the start and stop of three-phase asynchronous motor, and can be reversed at the stop.

  • Brand:

    WANTAI

  • Item NO.:

    QBZ-30, 60, 80/660(3

  • Order(MOQ):

    1

  • Goods Stock:

    500

  • Payment:

    T/T

  • Product Origin:

    China

  • Color:

    Optional

  • Shipping Port:

    China port

  • Lead Time：

    30 days
Inquiry now
Main application
The device is used in coal mines containing explosivegas (methane) and coal dust. It is suitable for the circuit center. To local control or remote control the start and stop of AC 50Hz, voltage 1140V, 660V or 380V, ungrounded three- phase asynchronous motor, and can be reversed at the stop.

The starter can be controlled remotely, with functions such as overload, phase failure, leakage locking and short-circuit protection. At the same time, there is a liquid crystal display in the observation window of the shell as the status display of operation, parameters, faults, etc.


Technical characteristics
1. Quick opening structure
2. With local control and remote control function

3. With reliable mechanical locking and electrical locking function



Protection function
With the multiple protection functions as short circuit, overload, leakage and open-phase .
Operating environment
1.It is suitable for underground coal mine with explosive gas;
2.The altitude is not more than 2000 meters, and the ambient pressure is (0.8 ~ 1.1) × 105Pa;
3.Where there is no dripping or water invasion, the ambient temperature is -5ºC ~ +40ºC.
4.The relative humidity of the surrounding air is no more than 95% (+25ºC).
5.Water or other liquids must be prevented from entering the soft starter.
6.On lines Hz, AC 50 voltage of 1140 V or 660 V or 380 V;Gas in the surrounding medium that does not damage the metal or the insulation.
7.Pollution level 3.
8.Installation categories: III class
