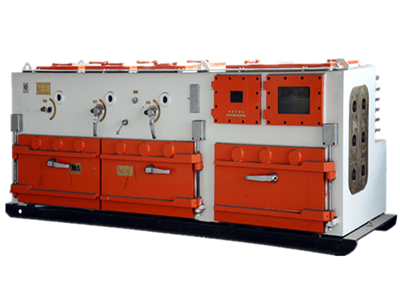

Mine Explosion Proof And Intrinsically Safe Multi Circuit High Voltage Vacuum Electromagnetic Starter

It is used in coalminesin three-phase neutral ungrounded transmission lines with voltage AC 3300V,50Hz. It canmake local and remote control of three-phase asynchronous motor and concentrated control of coal cutter,scraper conveyor, crusher,reversed loader, pump station and other equipments of comprehensive mechanized coalfaces.
  • Brand:

    WANTAI
  • Item NO.:

    QJGZ
  • Goods Stock:

    500
  • Product Origin:

    China
  • Color:

    Optional
  • Shipping Port:

    China port
  • Lead Time:

    30 days

Mining Explosion Proof Starter

Application

Mining explosion-proof and intrinsically safe type multi-loop high-voltage vacuum electromagnetic starter is suitable for coal mine AC 3300V, frequency 50Hz, three-phase neutral point unearthed power supply system, local or remote control of three-phase asynchronous electric drive, to realize the centralized control of shearer, scraper conveyor, crusher, transfer machine, pumping station and other equipment in comprehensive mechanized coal mining face.

Technical Parameters

Model QJGZ-2400/3300-8, 9, 10 QJGZ-1600/3300-6 QJGZ-800/3300-4, 2
rated operational current 2400A 1600A 800A
Number of output loops 8, 9, 10 6 4, 2
Vacuum isolation phase changer 3 Lines(Each line 800A) 2 Lines(Each line 800A) 1 Lines(Each line 800A)
Shape size including cable connector 3100*704*1219 3100*704*1219 1605*718*1205
Rated operational voltage 3300V  50Hz
vacuum contactor Single circuit maximum rated current:400A
Input and output mode Cable connector
Protection function Leakage, leakage locking, insulation monitoring, overload, short circuit, overvoltage, undervoltage, phase break
Fault query Query and store fault information for 30 days at any time
Display module The man-machine interface adopts embedded system, and the running condition is monitored dynamically.
Communication mode RS485,CAN Bus, Ethernet
Control mode Proximity control, security remote control, network control

multi-loop combination switch

Technical advantages and functional characteristics

1. The combined switch adopts PLC as the core control unit, which has the characteristics of field programmable, extensible input / output points, reliable operation and convenient operation. The man-machine interface adopts embedded industrial control computer, Window ce as operating system, color screen segmentation technology, dynamic display of the running status of the field equipment.
2. The embedded Chinese display system has friendly man-machine interface, convenient and intuitionistic man-machine conversation, "four remote" functions such as telemetry, remote communication, remote control, remote adjustment and so on. It is convenient to realize the unattended working face and achieve the centralized detection and monitoring of the ground dispatching room.
3. The control mode of the combined switch is close control, local security remote control and network control, which can be convenient to start, stop and control the operation mode of independent, program control and double speed, and the control mode is flexible and reliable.
4. The combination switch adopts the quick door opening structure, has the electrical, the mechanical interlocking system, guarantees the power off first, then opens the door. The unit module adopts the integrated module design, the drawer type structure, each circuit has the independent operation mechanism, each corresponding module can transmit the electricity independently and the power off, the module has the built - in commutation mechanism, may realize the commutation function.
5. The switch has the characteristics of small volume, light weight, low power consumption, high sensitivity and convenient installation and use. Reducing the workload of production, installation and maintenance to meet the different needs of users using equipment is an ideal replacement product for digital mines in China.
