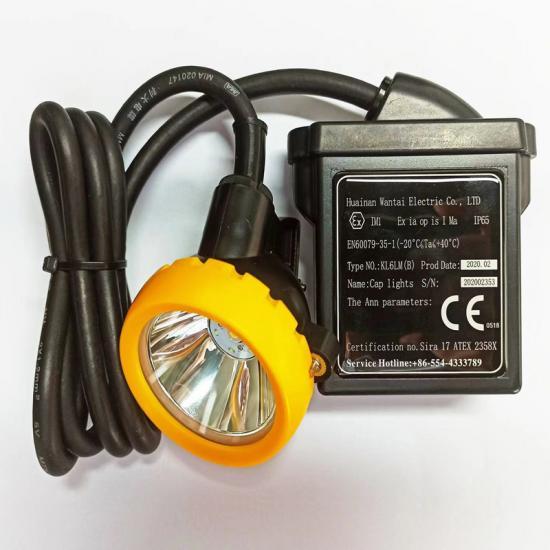

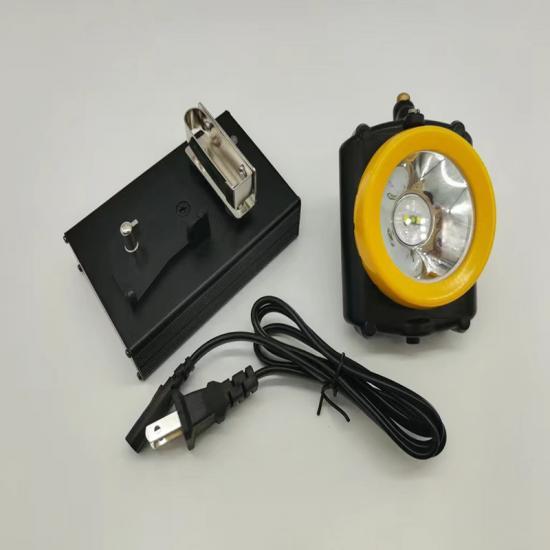

Underground coal mine use miner lamp

Application: KL6LM(B) Intrinsically Safe Type Miner's Lamp, this product is a portable lighting tool, mainly suitable for underground lighting, but also for tunnels, high-altitude and field operations.
  • Brand:

    WANTAI
  • Item NO.:

    KL2LM(B),KL4LM(B),KL
  • Payment:

    FOB
  • Market Price:

    20
  • Price:

    $10/100
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shanghai
  • Lead Time:

    30 days

Coal Mine Use Miner's Lamp



1. Features

Using LED as the main light source, the lamp does not need to replace the light source during the life cycle of the mine lamp. Meanwhile, because of the good heat dissipation performance of metal lamp cup, the light source working temperature is low, long life, safe and reliable.

A new type of charge and discharge protection board can be used to prevent overcharging and overdischarge and effectively improve battery life. When short-circuit occurs, the power supply can be cut off quickly, and the work can be resumed after troubleshooting to ensure safe use.



2. Technical Parameters

Parameter items

ATEX Intrinsically safe cap lamp

Normal Intrinsically safe cap lamp

Model

KL2LM(B),KL4LM(B),KL6LM(B)

KL2.5LM(A),KL4LM(A),KL5LM(A),KL6LM(A)

Life time

2 years

1.5years

Explosion-proof mark

Ex I M1 Ex ia op is I Ma

Ex ia I Ma

Temperature resistance of adhesive

≤200ºC

≤150ºC

Rated capacity

KL2LM(B)

2.5Ah

KL2.5LM(B)

2.5Ah

KL4LM(B)

4.5Ah

KL4LM(B)

4Ah





KL5LM(B)

5Ah

KL6LM(B)

6.6Ah

KL6LM(B)

6Ah

Main light source current

320mA±15mA(LED/Imported LED)

KL2.5LM(B)

140mA ±15mA

KL(4,5,6)LM(B)

180mA ±15mA

Main light source illumination

≥18000LX

≥5000LX( /Light Cup)
