Mine Flameproof Permanent Magnet Synchronous Frequency Conversion Motor

The permanent magnet synchronous motor adopts centralized winding, optimal pole slot coordination, and rotor structure integrating isolation, stress, positioning and lightweight, with small rotational inertia, small leakage flux, large main flux, higher power factor and higher efficiency.
  • Brand:

    WANTAI
  • Item NO.:

    TBVF
  • Order(MOQ):

    1
  • Payment:

    T/T,D/P,etc.
  • Market Price:

    30000
  • Price:

    $30000/set
  • Price Range:

    5 - 1000
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    China port
  • Lead Time:

    30 days

Product introduction

PMSM has the advantages of simple structure, small size, high efficiency and high power factor.

The permanent magnet synchronous motor adopts centralized winding, optimal pole slot coordination, and rotor structure integrating isolation, stress, positioning and lightweight, with small rotational inertia, small leakage flux, large main flux, higher power factor and higher efficiency. The torque amplifier coupled with the permanent magnet motor (planetary reducer) has the characteristics of increasing the output torque, matching the load inertia, and exclusive use of multi-tooth meshing. Under the control of frequency converter, when the permanent magnet motor is interconnected with multiple machines, it is easy to realize power balance control due to the soft mechanical characteristics.

Technical parameters
Rated working voltage: AC 1140V

Rated output power: 800kW
Number of motor poles: 20
Rated operating frequency of the motor 60Hz
Rated output speed of the motor: 80r7min
Cooling method: water cooling
Insulation grade of motor winding: class H
Motor power factor: 0.93
Motor efficiency: 96.2%
Motor rated current: 432A
Explosion-proof forms: Exd I Mb
Motor noise: w102dB
Motor vibration: w2.3mm/s
Overall size: 2613x1180x1135


Technical advantages and main features

  1. Optimized water, magnetic and circuit design, so that the motor has good electrical performance, low electromagnetic noise, super efficient energy saving;
  2. 3d software design, supplemented by ANSYS analysis software, finite element analysis of electromagnetic field, structure field, temperature field, etc., to ensure the high reliability of the motor. Compact structure, small size, improve the utilization of effective space underground;
  3. With solid magnetic pole structure, it can be used to drive sintering machine in steel plant, fan driven by mine, scraper, belt conveyor and other large moment of inertia load;
  4. At the rated voltage, the out-of-step torque of the motor is not less than 2 times the rated torque;
  5. The rotor is a silicon steel laminated and magnetic steel integral embedded structure, which can ensure the mechanical reliability of the magnetic steel under the action of centrifugal force and magnetic tension when the rotor rotates;
  6. The stator adopts h-class insulation, the whole stator vacuum pressure immersion h-class solveless paint, with good electrical performance and moisture-proof performance, the stator adopts advanced processing technology, compact structure, low stator iron consumption;
  7. The rotor permanent magnet adopts high- performance ndfeb magnetic steel, which has ultra-high magnetic, anti-demagnetization ability and high temperature resistance, which can ensure the electromagnetic reliability of the motor in long-term operation;
  8. Maintenance free, improve production efficiency, reduce maintenance cost and reduce maintenance time;


Related Products

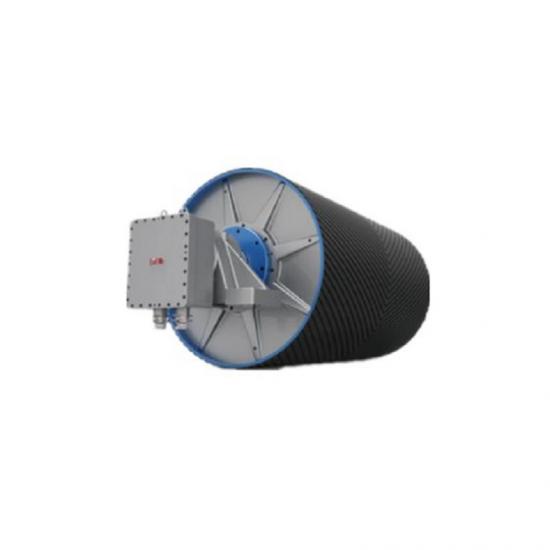

Permanent magnet electric drum

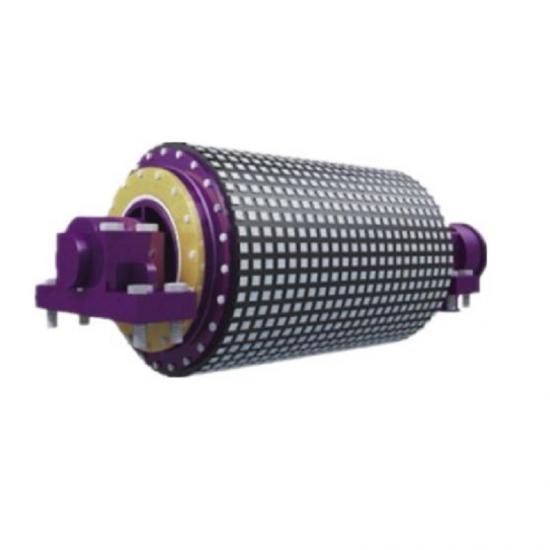

Mining Explosion-Proof Permanent Magnet Electric Roller
Mining flameproof three-phase permanent magnet synchronous electric drum is a new low-speed and high torque external rotor permanent magnet motor independently developed by Wantai, commonly known as permanent magnet electric drum.
Permanent Magnet Electric Motor
Mine flameproof and intrinsically safe deceleration permanent magnet synchronous frequency conversion speed regulating integrated machine
Taking advantage of the low-speed and high torque of permanent magnet motor, combined with the torque amplification function of planetary reducer and the control of frequency converter, the low-speed drive all-in-one machine has the smallest volume and the best performance. It is suitable for installation space limited and movable equipment.
Permanent Magnet Electric Motor
Explosion proof Permanent magnet motor
The permanent magnet synchronous motor adopts centralized winding, optimal pole slot coordination, and rotor structure integrating isolation, stress, positioning and lightweight, with small rotational inertia, small leakage flux, large main flux, higher power factor and higher efficiency.
Permanent Magnet Electric Motor
Mine Explosion-Proof Permanent Magnet Synchronous Motor
The permanent magnet synchronous motor adopts centralized winding, optimal pole slot coordination, and rotor structure integrating isolation, stress, positioning and lightweight, with small rotational inertia, small leakage flux, large main flux, higher power factor and higher efficiency.
Permanent Magnet Electric Motor
Mining explosion-proof and intrinsically safe variable frequency permanent magnet drive system
Taking advantage of the low-speed and high torque of permanent magnet motor, combined with the torque amplification function of planetary reducer and the control of frequency converter, the low-speed drive all-in-one machine has the smallest volume and the best performance. It is suitable for installation space limited and movable equipment.
Frequency Converter on The Ground
BPG series AC inverter cabinet
BPG Series AC Converter Cabinet is a series of converters developed and designed by our company for non-explosion-proof applications on the ground. It is a high-tech product that integrates digital frequency conversion speed regulation device, high and low voltage distribution device, heat dissipation technology, digital display communication technology and moisture-proof and cold-proof technology.
Explosion Proof Vacuum Feed Switch
Mine Use Explosion Proof Vacuum Feed Switch
Application: Used in coal mines, in AC 50Hz, rated voltage of 660V or 1140V, rated current to800, 1000A three-phase neutral point undergrounded power supply system, as a main switch or branch switch, but also as a large-capacity motor infrequently for starting control.
Lighting series
Mine flameproof and intrinsically safe lighting signal integrated protection device (cable connector type)
The device is suitable for the control and protection of ac 127V electrical equipment in mines containing explosive gas (methane) and coal dust.
