In this blog, we’ll explore how this technology works, its advantages, and why it’s becoming the preferred choice for modern conveyor systems.

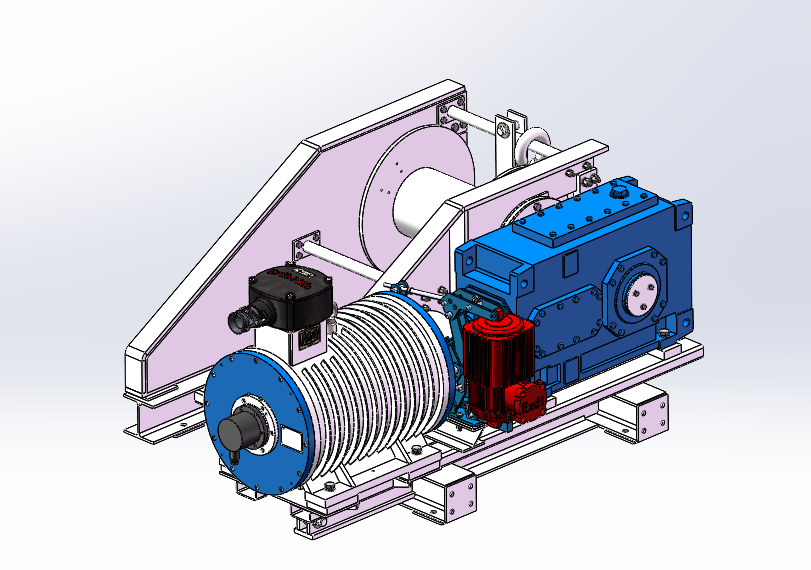

How Does a Permanent Magnet Variable Frequency Tensioning System Work?
A permanent magnet variable frequency tensioning system combines permanent magnet motors with frequency converter to provide precise, energy-efficient belt tension control. Here’s how it operates:

1. Permanent Magnet Motor

• Unlike traditional induction motors, permanent magnet motor use high-strength rare-earth magnets (e.g., neodymium) to generate torque with higher efficiency (up to 96-98%).
• They eliminate rotor losses, reducing heat generation and energy waste.

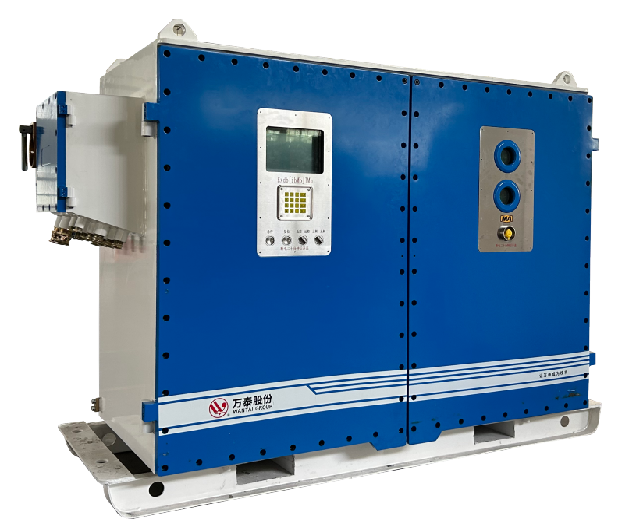

• The frequency converter adjusts motor speed in real time based on tension feedback from load cells and encoders.
• Enables soft start/stop, reducing mechanical stress on the belt and structure.

• An integrated PLC or smart controller continuously monitors belt tension and compensates for load changes, elongation, and environmental factors.

Key Advantages Over Conventional Tensioning Systems
1. Energy Savings (Up to 30% Less Power Consumption)

• Permanent magnet motor operate at near-full efficiency even at low speeds, unlike induction motors, which lose efficiency under partial loads.
• Frequency converter optimize power usage by matching motor speed to actual demand.

2. Precise & Dynamic Tension Control

• Instant response to belt slack or overload conditions.
• Eliminates the "jerking" effect seen in hydraulic or counterweight systems.

3. Reduced Maintenance & Longer Lifespan

• No hydraulic oil leaks or weight adjustments required.
• Fewer moving parts → lower wear and tear.

4. Smart & IoT-Ready

• Can integrate with remote monitoring systems for predictive maintenance.
• Data logging helps optimize performance over time.

5. Compact & Space-Saving

• Eliminates bulky counterweights or hydraulic power units.
• Ideal for confined spaces like underground mines.

Applications in Mining & Bulk Handling

• Underground Coal Mining – Safe, explosion-proof designs (Ex d certification).
• Long-Distance Overland Conveyors – Reduces energy loss over kilometers of belt.
• High-Speed Sorting & Port Conveyors – Handles rapid load changes smoothly.

• The next evolution of PMVF take-up systems includes:
• AI-based tension prediction – Machine learning algorithms anticipate load shifts.
• Digital twin integration – Simulates belt behavior for proactive adjustments.
• Wireless sensor networks – Eliminates hardwired feedback systems.
